CE Automatic Corrugated Carton Machine Paperboard Partition Assembler Machine

Product Categories

Cangzhou Zhaoli Import & Export Trade CO.,LTD.

Contact Now

Name: CE Automatic Corrugated Carton Machine Paperboard Partition Assembler Machine
Brand: Zhaoli
Price: 25000 USD

Brand Name : Zhaoli

Model Number : 500 X 900 - 6N

Certification : CE Certificate

Place of Origin : China

MOQ : 1 Set

Price : USD 25000 - 30000 Per Set

Payment Terms : L/C, D/A, T/T

Supply Ability : 5 Sets Per Month

Delivery Time : 30 - 40 Work Days

Packaging Details : Plastic Packing

Machine Name : Corrugated Carton Partition Assembler Machine

Machine speed : 60 groups / min

Paperboard Thickness : 1.5- 7 mm

Host belt speed : 15-30 m/min

Contact Now

Automatic Corrugated Paperboard Partition Assembler Machine / Carton Box Making Machine

1 , Machine Main Function And Feature

* Lengthways and horizontal sheets do decussation inserting.

* Automatic inserting each kinds clapboard and block

* Instead of manual, two sets per time.

* Auto inserting each kind clapboard and block.

* Double-position output type,double efficacy.

*Pneumatic system and electric system to make sure the advancement of device control.

*Each steam equipment get gas from the main pipe,independent control,no mutual influence.

*PLC man-machine interface,easy to operate.

2, Machine Main parameter

Voltage	380v/50Hz	3 phases 4 lines
Power	10kw	Not including the air compressor
Host belt speed	15-30m/min
clapboard combining form	3-(1-N)	In double working station
	Longitudinal clapboard feeding track number	6
	Horizontal clapboard feeding track number	1-12
Clapboard size	Length =120-500mm	clapboard thickness 1.5-7mm
	Height= 70-300mm
	Width=120-450mm(double station)	Width=120-900mm(single station)
	Lattice space C=50-150mm
	Lattice space D=30-150mm
Working speed	40-60 groups/min	Working speed is related with clapboard size and combining form
When the width of clapboard is bigger than 450mm, the machine just can work in single station. Air compressor or air compression station reauirement 6kgf/cm2 For the special type of clapboard, we can customize the machine as clients want.

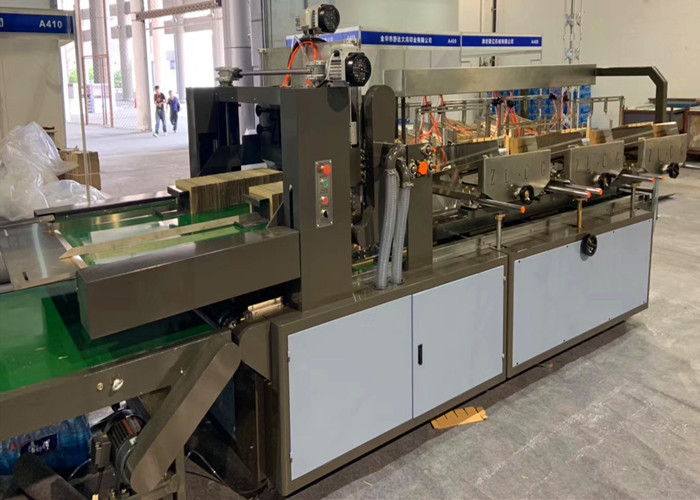

3 Machine Main Details Picture

CE Automatic Corrugated Carton Machine Paperboard Partition Assembler Machine

If you are interested in this machine ,please contact with me !
